Product Overview
The industrial socket distribution box family is intended for projects that need several protected power outlets grouped in one enclosure. The catalogue shows configurations with one or more covered sockets and, on selected layouts, a breaker mounted in the same enclosure.
The BOWO catalogue specifies IP66, IK08, CE and RoHS. Socket electrical ratings, breaker ratings and internal wiring must be confirmed for the selected project rather than inferred from the enclosure image.
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Industrial Socket Distribution Box |
| Enclosure Material | ABS |
| Ingress Protection | IP66 |
| Impact Rating | IK08 |
| Compliance | CE, RoHS |
| Socket Layouts | Multiple configurations |
| Breaker Integration | Shown on selected catalogue configurations |
| Custom Openings | Available |
Socket Box Configurations

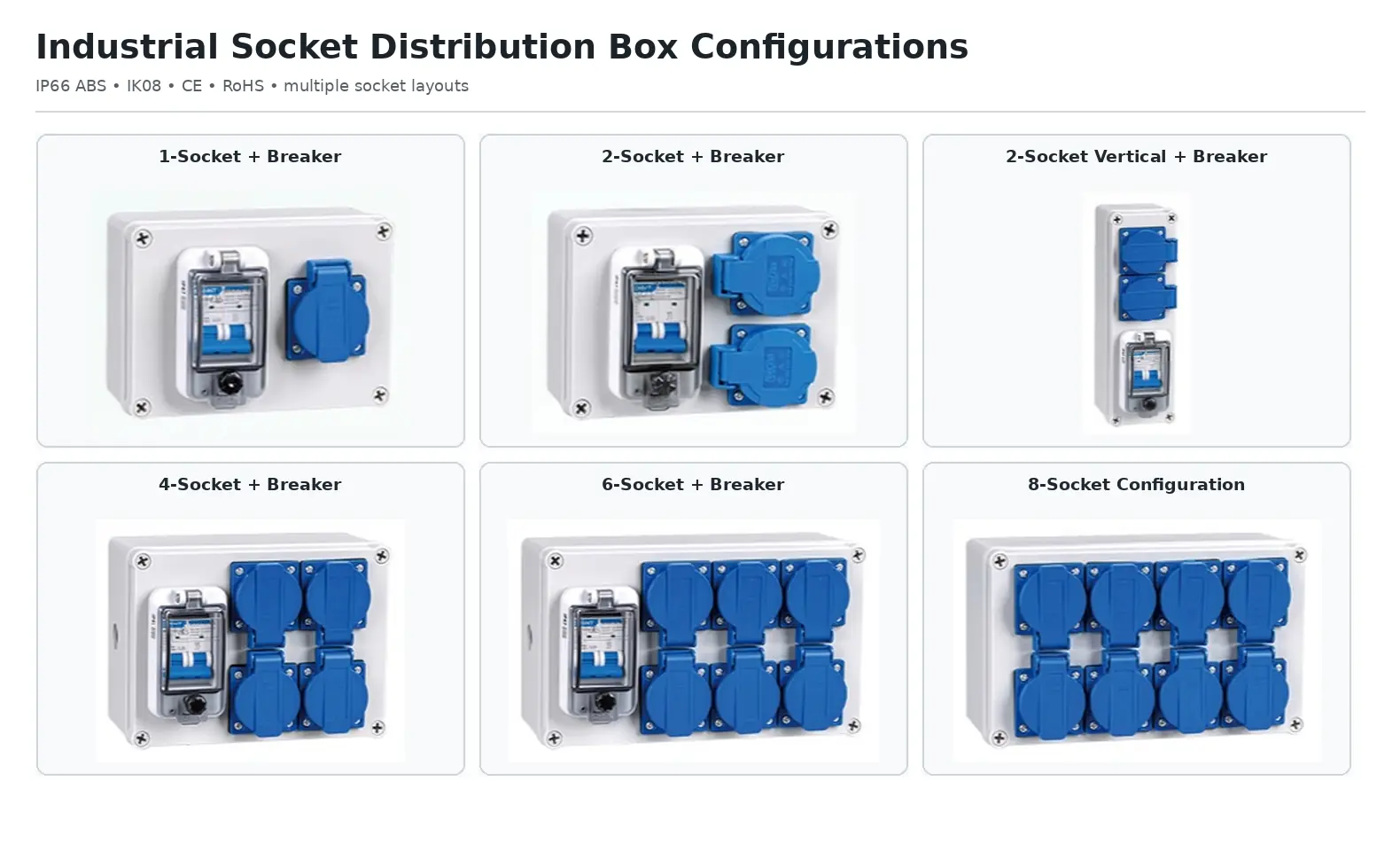

The catalogue includes six representative layouts. The model image below consolidates the available socket-count and orientation options.
| Configuration | Catalogue Layout |
|---|---|
| 1-Socket + Breaker | Single protected socket with breaker |
| 2-Socket + Breaker | Two-socket layout with breaker |
| 2-Socket Vertical + Breaker | Vertical two-socket configuration |
| 4-Socket + Breaker | Four-socket distribution layout |
| 6-Socket + Breaker | Six-socket distribution layout |
| 8-Socket Configuration | Eight-socket enclosure shown without an integrated breaker in the catalogue image |
What Must Be Confirmed for an Electrical Project
The enclosure configuration alone does not define the electrical rating. Before ordering, confirm the socket standard, voltage, current, breaker arrangement, incoming cable, outgoing load and required internal wiring. These details are project-specific and should be reviewed together.
Applications
- Factory and workshop local power connection
- Machine-area service outlets
- Industrial equipment power distribution
- Temporary or auxiliary power points where the selected socket and protection scheme are appropriate
Customization
- Socket quantity and physical layout
- Breaker position where required
- Custom cable-entry openings
- Project-specific enclosure color for larger quantities
FAQ
What IP rating is listed for the Socket Box series?
The BOWO catalogue specifies IP66 and IK08.
How many socket layouts are shown?
The catalogue shows configurations with 1, 2, 4, 6 and 8 sockets, including a vertical two-socket layout.
Does every model include a breaker?
No. The catalogue imagery shows breaker integration on several configurations, while the eight-socket example is shown without a breaker. Confirm the required protection scheme for the selected project.
Can BOWO customize openings?
Yes. Custom openings are listed as an available option.
What compliance information is listed?
The catalogue lists CE and RoHS.
Order & Project Support
Provide the socket standard, quantity, voltage/current requirements, breaker arrangement, incoming cable specification, outlet layout, installation environment and order quantity. These electrical details are necessary before the final configuration is confirmed.
