Product Overview
A junction box with terminal block reduces the amount of terminal-selection and mounting work required for a field connection point. The BOWO catalogue shows several terminal-box configurations with defined enclosure dimensions, cable inlet/outlet counts and current ratings.
The enclosure series is specified as IP66 and IK08 and is listed with CE and RoHS. Current rating and cable-entry arrangement are model-specific and should be matched to the actual circuit requirements.
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Waterproof Terminal Block Junction Box |
| Enclosure Material | ABS |
| Ingress Protection | IP66 |
| Impact Rating | IK08 |
| Compliance | CE, RoHS |
| Current Range in Catalogue | 15A to 45A depending on model |
| Cable Configurations | 1-in/1-out to 3-in/3-out |
| Custom Openings | Available according to project requirements |
Terminal Box Models

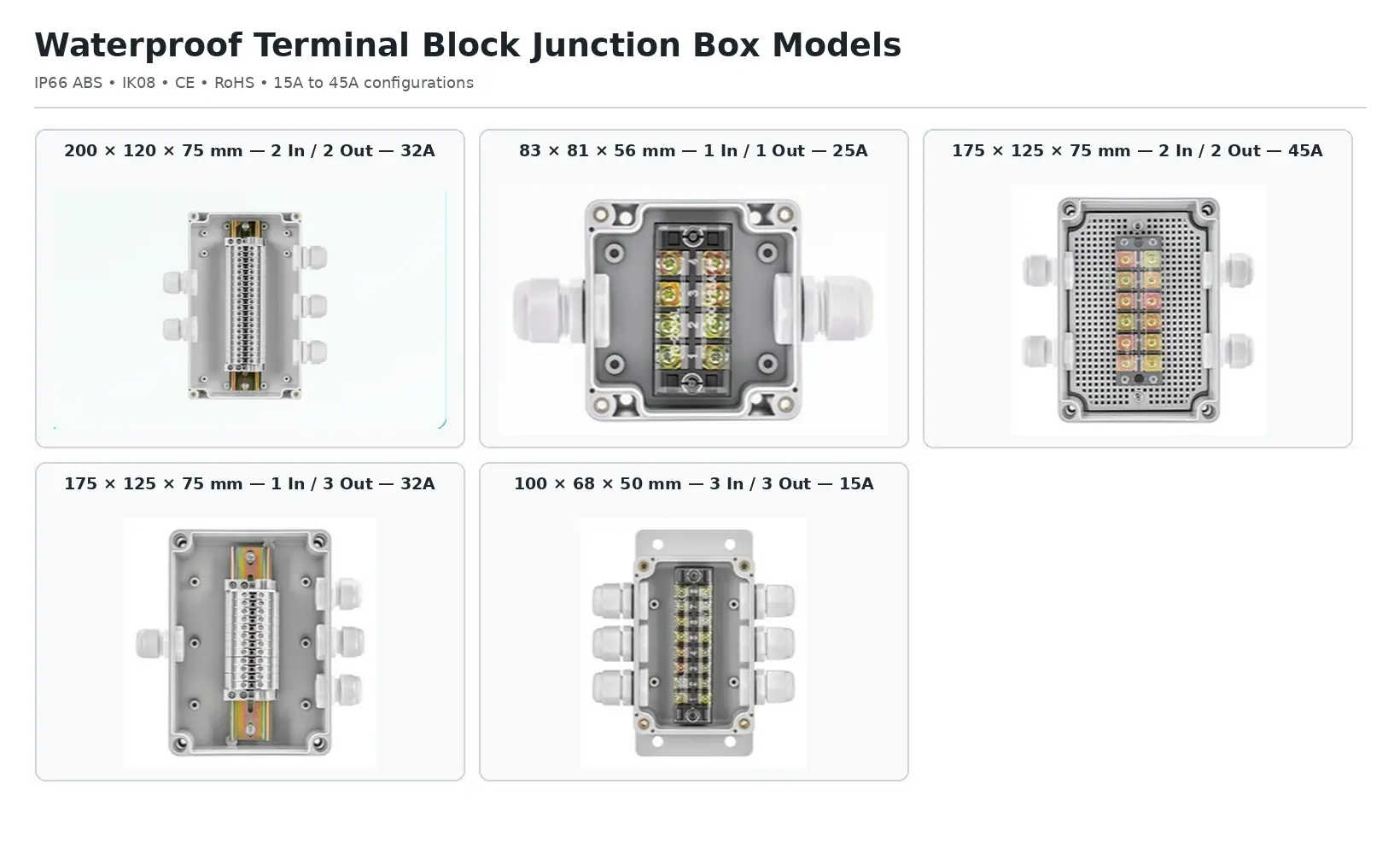

The catalogue lists five terminal-box configurations. The full-size model image below shows the terminal arrangement and cable-entry layout for each model.
| Enclosure Size | Cable Layout | Current |
|---|---|---|
| 200 × 120 × 75 mm | 2 In / 2 Out | 32A |
| 83 × 81 × 56 mm | 1 In / 1 Out | 25A |
| 175 × 125 × 75 mm | 2 In / 2 Out | 45A |
| 175 × 125 × 75 mm | 1 In / 3 Out | 32A |
| 100 × 68 × 50 mm | 3 In / 3 Out | 15A |
How to Select a Terminal Junction Box
- Current requirement: choose a model whose listed current rating matches the circuit design.
- Number of cables: select the inlet/outlet arrangement that matches the wiring topology.
- Conductor size: confirm compatibility with the installed terminal block before ordering.
- Environment: verify IP66 is suitable for the complete installation.
- Space and maintenance: allow sufficient clearance for conductor termination and service access.
Select by Current and Cable Layout
The enclosure should be selected around both electrical load and wiring arrangement. A higher-current model is not automatically the best choice if the cable-entry layout does not match the installation. Compare the required current rating together with the number of incoming and outgoing cables and the available mounting space.
See the full terminal block junction boxes range for other current ratings and enclosure sizes.
Applications
- Field wiring junctions
- Equipment connection points
- Branch connections between incoming and outgoing cables
- Industrial control and auxiliary power wiring
- Outdoor electrical connections where the selected IP66 assembly is appropriate
For general enclosure protection selection, see the IP-rated waterproof junction box selection guide.
Customization
If the standard cable-entry arrangement does not match the project, provide the required gland positions and cable directions. Custom openings are listed as an available option in the catalogue.
FAQ
What current ratings are shown in the catalogue?
The listed terminal-box models cover 15A, 25A, 32A and 45A configurations.
What cable layouts are available?
The catalogue shows 1-in/1-out, 2-in/2-out, 1-in/3-out and 3-in/3-out configurations.
What is the enclosure protection rating?
The series is specified as IP66 with an IK08 impact rating.
Can cable-entry positions be customized?
Yes. Custom openings are listed as an available option.
What compliance information is listed?
The catalogue lists CE and RoHS.
Order & Project Support
Provide the circuit current, conductor size, number of incoming and outgoing cables, preferred enclosure size, cable-entry positions, installation environment and order quantity. Model selection should be confirmed against both the enclosure and terminal-block requirements.
For related enclosure options, view the BOWO electrical enclosure product range.
