Outdoor and Industrial Electrical Enclosure Applications
BOWO enclosures are specified for installations where connections, protection devices and controls have to keep working through rain, dust, washdown and temperature change. The six applications below cover most of the enquiries we receive from OEM equipment projects and site installations. Each module lists the conditions that decide the product, the enclosure series that fits the requirement, and a related project case.
1. Industrial Automation & Machinery
Machine builders and automation integrators use enclosures for three different tasks on the same machine: wiring points that stay closed, terminal boxes that join several circuits, and local control stations that operators use every shift. Selection starts with the internal component layout and the protection level required, then moves to cable-entry position and how often the box has to be opened. Standardising one enclosure family across a machine platform reduces drawing work and spare-part variety on every repeat order.
Products: F Series Waterproof Junction Box, Waterproof Terminal Block Junction Box, Waterproof Push Button Control Station. Case: plant-wide pushbutton control stations for an automated factory.
2. Outdoor CCTV & Monitoring
Roadside, perimeter and yard cameras need a protected connection point between the routed cable and the equipment mounted above. The enclosure is usually fixed to a pole or structure, exposed to rain, splash, dust and vibration, with the cable entering from below through sealed glands. Specify the usable internal space, the number of cable entries and the mounting method first. A screw-fixed box suits a position that stays closed, while a latch enclosure is the better choice where the maintenance team opens it regularly. A viewing window is only needed where a meter or indicator has to be read without opening the door.
Products: F Series Waterproof Junction Box, Plastic Latch Waterproof Junction Box, Electrical Enclosure Inspection Window. Case: IP67 junction box for a roadside CCTV camera.
3. DIN Rail & Power Distribution
Distribution requirements are set by the modules, not by the outside size of the enclosure. Confirm the number of DIN modules, the breaker layout, the usable wiring space and the cable-entry direction before choosing a size, because terminals and cable bends consume space that external dimensions alone do not show. A transparent cover is used where breakers and indicators have to be checked during operation without opening the enclosure. Where the installation also needs a visible power take-off point, an industrial socket distribution box can be specified alongside.
Products: HT DIN Rail Distribution Box, HTC Waterproof Distribution Box, Industrial Socket Distribution Box. Case: electrical protection for an underground parking garage.
4. Pumps & Water Treatment Equipment
Pump, dosing and water-treatment installations combine moisture, splash and frequent inspection. Enclosures are normally mounted on frames, skids or walls beside the equipment, with cable entries arranged so that water cannot run along the cable into the gland. Specify the terminal or module requirement, the cable-entry direction and the access frequency, and confirm whether components behind the cover need to be visible during a service round. A transparent distribution box is often chosen for this reason, with a waterproof junction box used for the connection points on the same installation.
Products: HTC Waterproof Distribution Box, HT DIN Rail Distribution Box, F Series Waterproof Junction Box. Case: IP65 distribution box for a residential pool pump installation.
5. Outdoor Infrastructure & Charging
Charging areas, barrier gates, lighting and roadside infrastructure place the enclosure in public space, where it is opened for service and exposed to weather as well as casual contact. Latch closures are the practical choice for enclosures opened by maintenance teams, and socket distribution boxes are used where power has to be taken from a fixed point on site. Confirm the mounting method, the cable-entry layout and the socket or breaker configuration that is supported by the exact model before ordering.
Products: Plastic Latch Waterproof Junction Box, Hinged Waterproof Electrical Enclosure, Industrial Socket Distribution Box. Case: weather-resistant electrical protection for an e-bike charging area.
6. Machine-Side Local Control

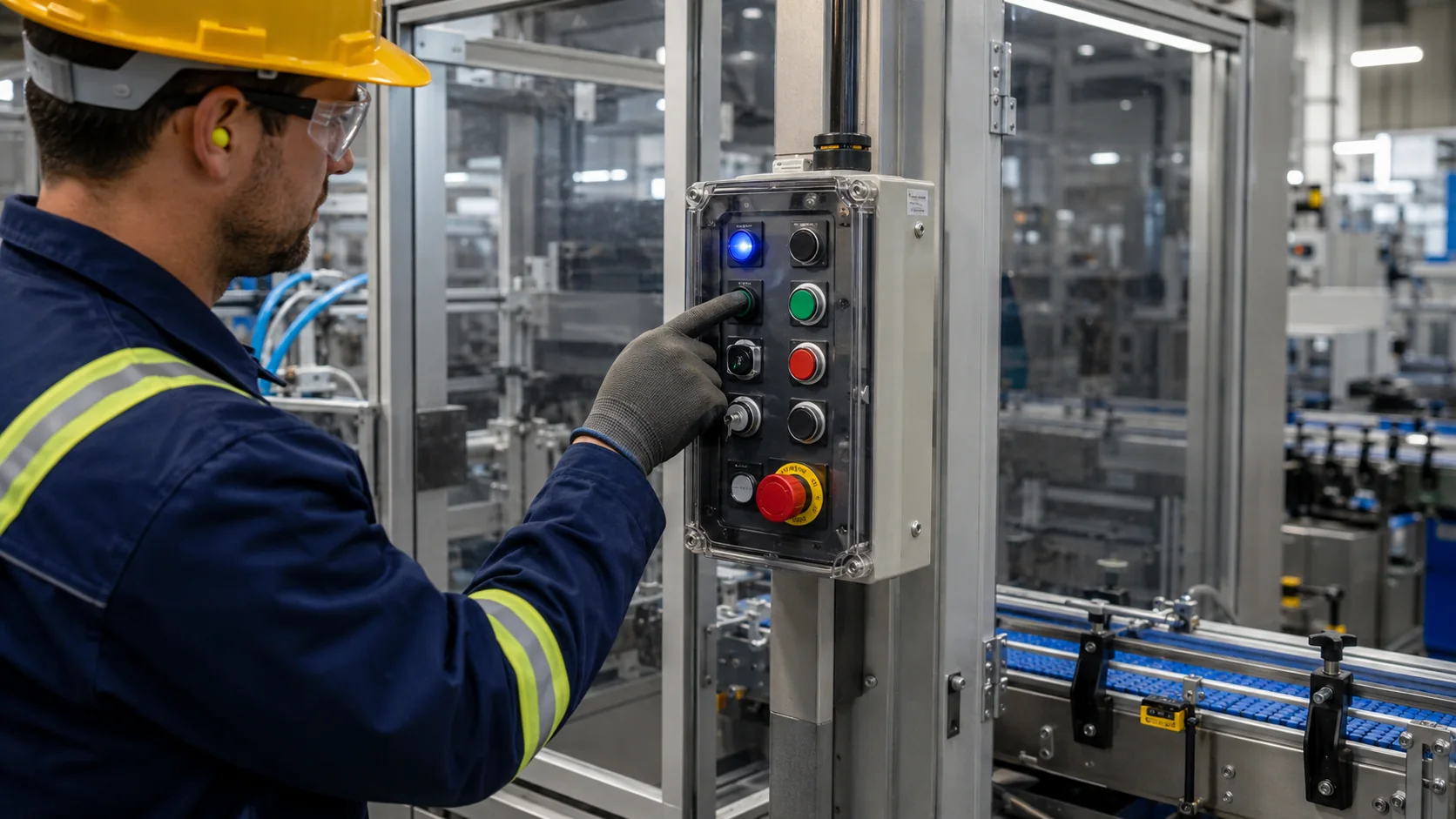

Local control stations give operators start, stop, reset, mode selection and emergency stop functions at the machine instead of at the main cabinet. Specification follows the function list: how many operators are needed, what each one does, how they are arranged on the front panel, and how much depth the contact blocks, terminals and emergency-stop wiring require behind it. The wiring behind the station is normally brought into a terminal box mounted on the same machine, which keeps the control point and the connection point in one serviceable area.
Products: Waterproof Push Button Control Station, Waterproof Terminal Block Junction Box. Case: plant-wide pushbutton control stations for an automated factory.
Send the Project Conditions for a Selection
For an application review, send the installation environment, the enclosure size or internal component layout, the protection level required, the cable-entry or opening drawing, the mounting method and the order quantity. See the waterproof electrical enclosures hub for the full product range.
