Product Overview
The electrical panel window cover series is designed to add a transparent external cover over local controls or viewing areas. This can help protect the operator interface from dust and water exposure while still allowing visual inspection of buttons, indicators or labels.
The BOWO catalogue specifies IP67 and IK08, together with CE and RoHS. The catalogue shows both with-base and without-base versions, so the installation concept can be selected around the host panel or enclosure.
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Waterproof Electrical Panel Window Cover |
| Material | ABS enclosure structure according to catalogue |
| Ingress Protection | IP67 |
| Impact Rating | IK08 |
| Compliance | CE, RoHS |
| Configurations | 2, 3, 4, 5, 6, 8, 10, 12, 13, 16 positions |
| Structure Options | With base / without base |
| Custom Openings | Available |

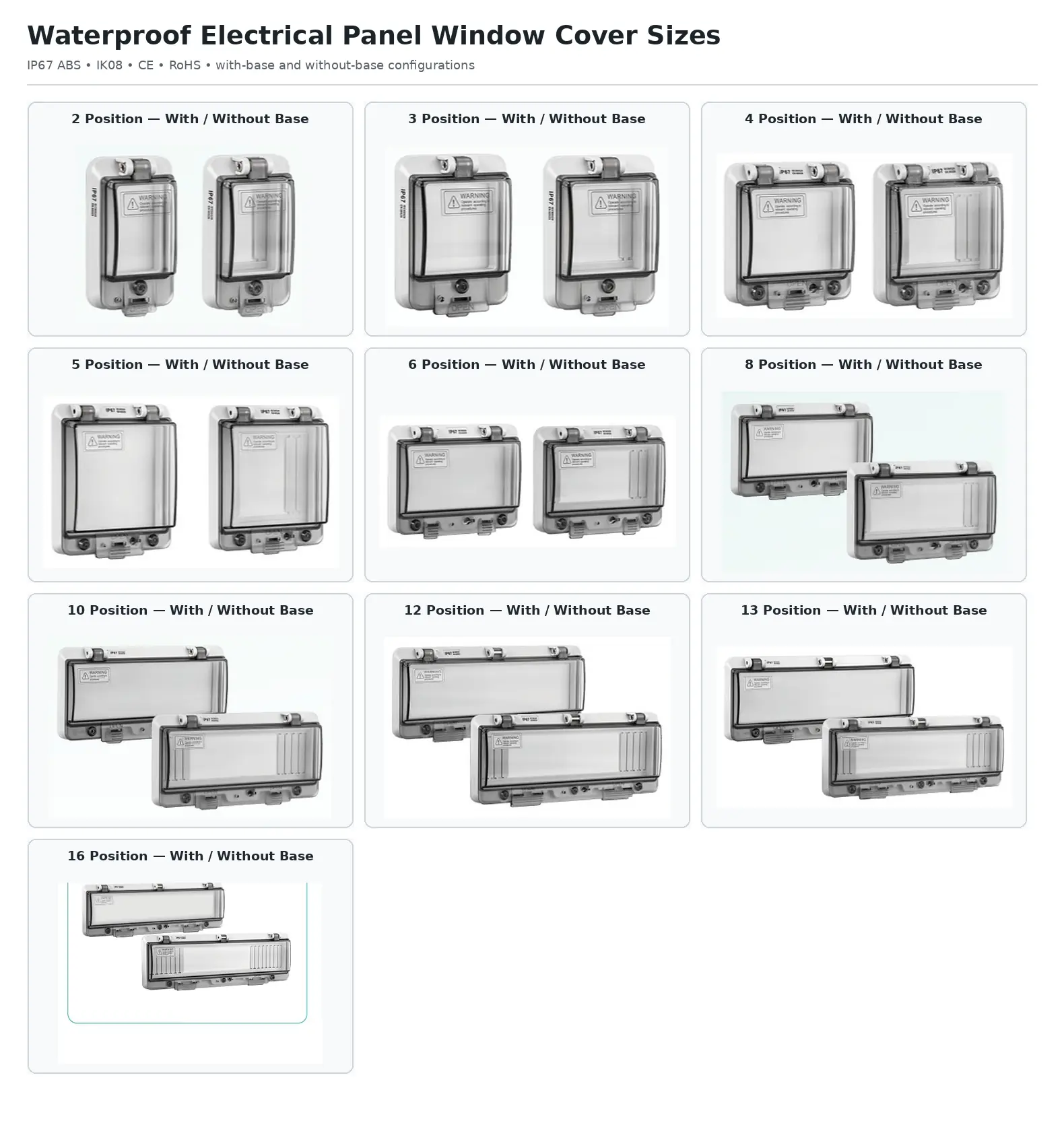

Available Window Cover Sizes
The model overview below groups all standard position counts and shows the paired with-base and without-base configurations.
| Position Count | Structure |
|---|---|
| 2 | With base or without base |
| 3 | With base or without base |
| 4 | With base or without base |
| 5 | With base or without base |
| 6 | With base or without base |
| 8 | With base or without base |
| 10 | With base or without base |
| 12 | With base or without base |
| 13 | With base or without base |
| 16 | With base or without base |
Where This Window Cover Is Useful
- Push button and selector switch protection
- Pilot light and status indicator viewing
- Machine-side operator panels
- Industrial automation equipment
- Outdoor or washdown-adjacent control points where IP67 protection is appropriate for the complete installation
For a related machine-control application, see waterproof electrical enclosures for industrial automation and machinery.
With Base vs Without Base
With-base configurations provide a dedicated surrounding base structure. Without-base configurations are intended for integration where the host enclosure or panel provides the underlying mounting surface. Confirm the mounting cutout and fastening arrangement before production.
Selection Checklist
- Choose the required protected control width or position count.
- Confirm whether the project needs a with-base or without-base structure.
- Check clearance around buttons, indicators and labels.
- Confirm IP67 is appropriate for the complete installed assembly.
- Provide opening dimensions if the mounting arrangement is customized.
FAQ
What position counts are available?
The catalogue lists 2, 3, 4, 5, 6, 8, 10, 12, 13 and 16-position configurations.
Are with-base and without-base versions available?
Yes. The catalogue shows both structures.
What protection rating is listed?
The series is specified as IP67 and IK08.
Can the cover be used over push button stations?
The catalogue application imagery shows the window cover used over an industrial operator station. Clearance and mounting should be checked against the actual control layout.
What compliance information is listed?
The catalogue lists CE and RoHS.
Order & Project Support
Provide the required protected area, position count, with-base or without-base preference, host panel dimensions, opening layout and quantity. A dimensional drawing is recommended for panel integration.
For compatible operator enclosures, see the IP66 waterproof push button box and the BOWO enclosure product range.
