A push button box is an electrical enclosure designed to house push buttons, selector switches, indicator lights, emergency stop buttons, and other control components. It provides operators with a convenient control interface while protecting internal electrical connections.

Push button boxes are commonly used in industrial machinery, automation systems, production lines, outdoor equipment, and electrical control applications. The right enclosure depends on the button configuration, installation environment, IP rating, material, and mounting requirements.

What Is a Push Button Box?

A push button box, also called a push button enclosure or push button control box, provides a protected housing for machine and equipment controls.

Depending on the application, it may contain:

• Push buttons
• Emergency stop buttons
• Selector switches
• Indicator lights
• Start and stop controls

The enclosure can be configured for a single button or multiple controls according to the equipment requirements.

Common Applications

Push button boxes are used across many industrial and commercial applications, including:

• Industrial machinery
• Automation equipment
• Conveyor systems
• Production lines
• Pumping systems
• Water treatment equipment
• Outdoor electrical equipment
• Material handling machinery

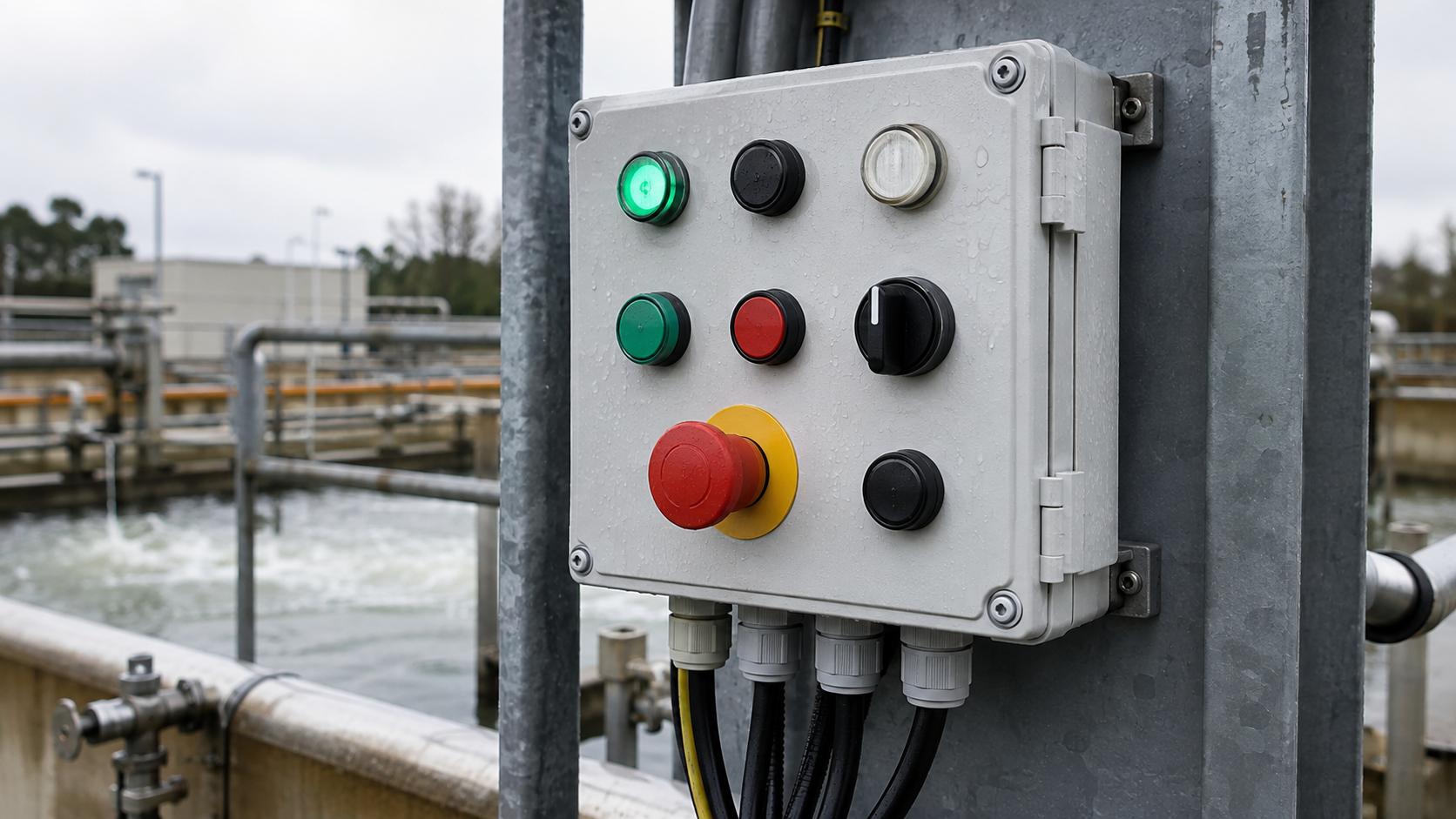

For outdoor or wet environments, a waterproof design can provide additional protection for the control components and wiring.

How to Choose a Push Button Box

1. Determine the Button Configuration

First determine how many buttons and switches are required. A simple machine may only need start and stop buttons, while a more complex system may require multiple buttons, selector switches, indicator lights, and an emergency stop.

The button layout should provide enough space for comfortable and reliable operation.

2. Check the IP Rating

For outdoor and industrial applications, the required IP rating should be considered carefully.

Dust, rain, water spray, humidity, and cleaning conditions can all affect the required protection level. The complete assembly, including buttons, cable glands, gaskets, and openings, should be considered when evaluating protection.

For more information, see our guide on how to choose an IP-rated waterproof junction box.

3. Choose the Right Material

Plastic materials such as ABS and polycarbonate are commonly used for electrical enclosures.

ABS provides a practical balance of weight, mechanical performance, and cost, while polycarbonate is known for its strong impact resistance.

The appropriate material should be selected according to the actual application and environmental conditions.

4. Consider Cable Entry and Mounting

Cable entry is an important part of push button box design. The number and diameter of cables, cable gland size, entry position, and sealing requirements should be confirmed before production.

The mounting method should also match the equipment. Wall-mounted, machine-mounted, and portable configurations may require different enclosure designs.

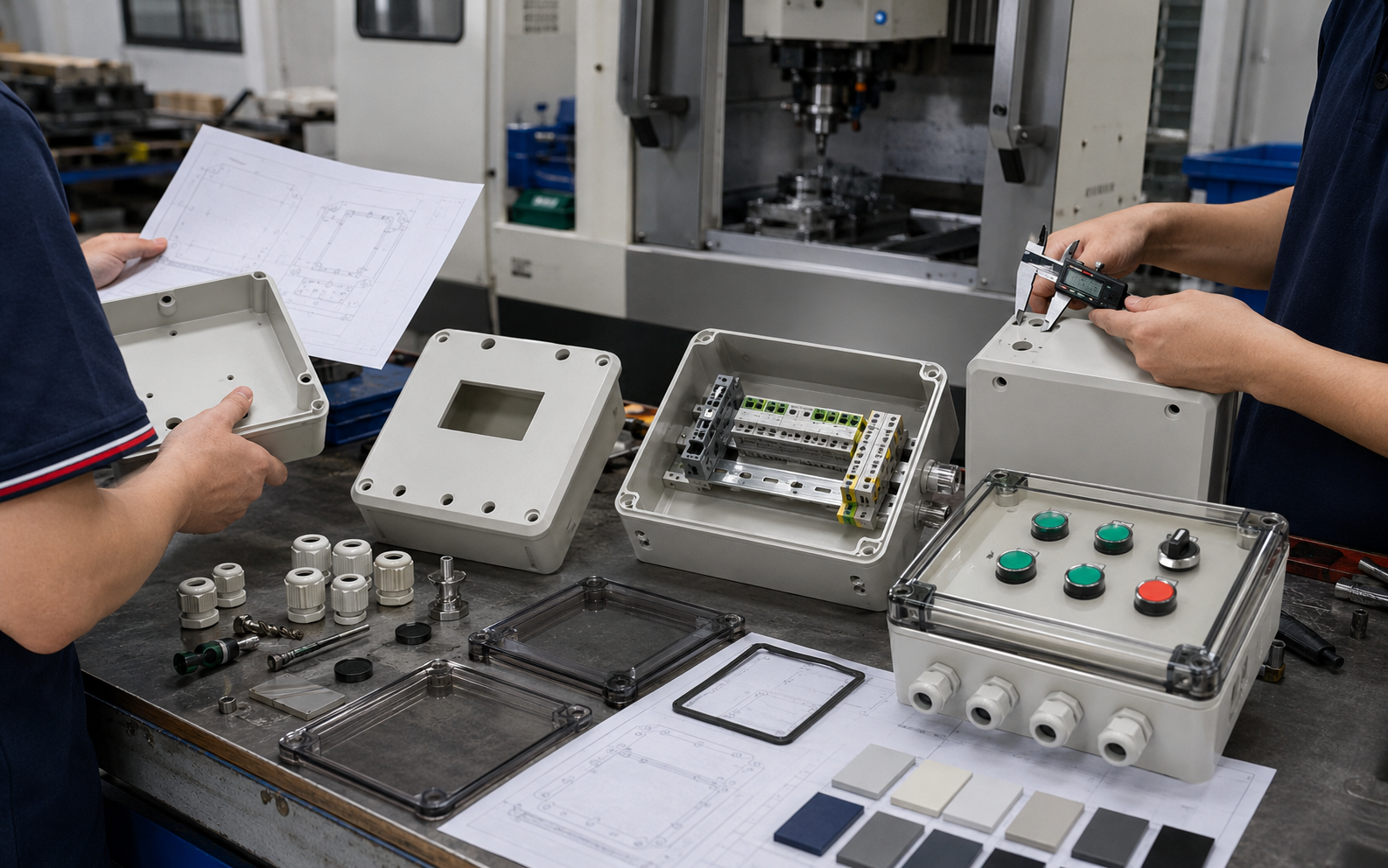

Custom Push Button Boxes for OEM Projects

Standard enclosures are suitable when the dimensions and button configuration match the equipment. For OEM applications, however, customization may be required.

Common customization options include:

• Custom enclosure dimensions
• Button and switch openings
• Emergency stop openings
• Custom cable entry holes
• Mounting holes
• Custom colors
• Logo printing and marking

Providing drawings, button dimensions, cable specifications, and mounting requirements can help the manufacturer evaluate the project more accurately.

Why Choose BOWO for Push Button Enclosures?

BOWO Electric provides electrical enclosure solutions for industrial, outdoor, and OEM applications.

Push button box configurations can be evaluated according to the required button arrangement, enclosure size, IP protection, material, cable entry, and mounting method.

For customized projects, BOWO can work from technical drawings, 3D models, product samples, or basic dimensional information to develop a suitable enclosure configuration.

Push Button Box Selection Checklist

• Number and type of buttons
• Enclosure dimensions
• Required IP rating
• Material
• Cable entry requirements
• Mounting method
• Operating environment
• Customization requirements
• Order quantity
